[Dubious]

(2.5 V6 with the horizontal DIS pack) I've carefully labelled the wires, but want to make sure I put them back in the right sockets.

Is it 1,3,5,6,4,2 counted clockwise from the connector ?

Thanks.

[Marks DTM Calib]

Nope...

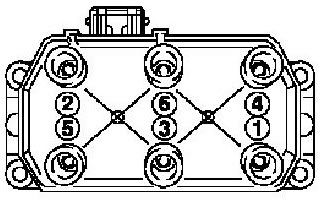

Its 135 - 462

as per:

[Dubious]

Thanks for that, but mine has the connector at the end of the dis pack, and it plugs in parallel with the leads.

I now think it might be 5 3 1 4 6 2, clockwise from the connector. Does that sound right ?

Thanks.

[johnboy27]

Does it not have the numbers on it. or is it already fitted & you cant see it. i remember changing mine & it been very fiddley & working by feel rather than sight

[Dubious]

Does it not have the numbers on it. or is it already fitted & you cant see it. i remember changing mine & it been very fiddley & working by feel rather than sight

It's still installed, and I can't get close enough to see the numbers. I've managed to get a picture off fleabay on which I can see some of the numbers, and did record my 1,3,5 when I took them off so I know those.

[johnboy27]

Fingers crossed then eh.
Good luck, i know how bad they are to get to.
Have you removed the plastic scuttle panel & wiper motor to give better access

[Dubious]

Yes - the scuttle and wiper motor were the easy bit !

I might have another go at getting the DIS pack out to check it and the numbering, but I've really struggled with the last bolt.

[johnboy27]

they are a nightmare. i knew i had fit one on v6 vectra once so thought it would be similar job then i remembered the vectra engine sits the other way round. prop took 3 or 4 times longer
