Auxiliary Belt Diagram - 2.2 Dti
« on: 16 March 2012, 17:44:16 »
Hi Guys

Hope someone can help.

I have had problems with my Aux Belt Tensioner. 2.2 Dti

Now sorted.

But I could do with a Diagram or Photo of the route of the belt. I have tried all sorts of ways and have loads of spare belt.

I'm sure it's simple, but I can't figure it out. :-\

I had a diagram at one time, but can't find it now.

Can anyone help please. :y
Logged
Omega 2.0 DTI GLS Estate 99 Gold & Omega 2.2 DTI CDX Estate 03 Silver. Just need a Bronze one now for the full set.

RobG

  • Omega Queen
  • *****
  • Offline Offline
  • Gender: Male
  • Bristol
  • Posts: 13831
  • I might have a link, pic or part number for that
    • 16 plate Mokka. Vivaro
    • View Profile

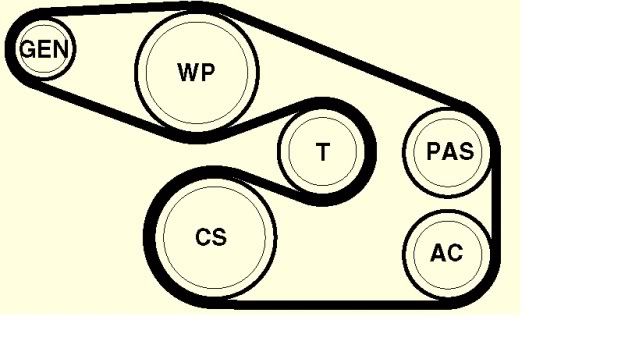

Re: Auxiliary Belt Diagram - 2.2 Dti
« Reply #1 on: 16 March 2012, 17:48:40 »
Logged
All that is necessary for the triumph of evil is that good men do nothing.

UPVC windows/doors/fascias/soffit/gutters supplied/fitted

Boiler Man

  • Intermediate Member
  • ***
  • Offline Offline
  • Gender: Male
  • Sale, Manchester
  • Posts: 368
    • View Profile
Re: Auxiliary Belt Diagram - 2.2 Dti
« Reply #2 on: 16 March 2012, 17:52:42 »
Thank You RobG

Obvious when it's in front of you :y

Much appreciated.
Logged
Omega 2.0 DTI GLS Estate 99 Gold & Omega 2.2 DTI CDX Estate 03 Silver. Just need a Bronze one now for the full set.
