Camshaft sensor position on 2.6 v6
« on: 30 March 2009, 12:26:38 »
Can someone please send me a picture of where to locate camshaft sensor as I have no idea where to look.

Thanks
Logged

Marks DTM Calib

  • Administrator
  • *****
  • Offline Offline
  • Gender: Male
  • West Bridgford
  • Posts: 33982
  • Git!
    • View Profile
Re: Camshaft sensor position on 2.6 v6
« Reply #1 on: 30 March 2009, 15:21:50 »
I will grab a picture of the one on the spare MV6 on the drive tonight
Logged

Marks DTM Calib

  • Administrator
  • *****
  • Offline Offline
  • Gender: Male
  • West Bridgford
  • Posts: 33982
  • Git!
    • View Profile
Re: Camshaft sensor position on 2.6 v6
« Reply #2 on: 30 March 2009, 15:26:34 »

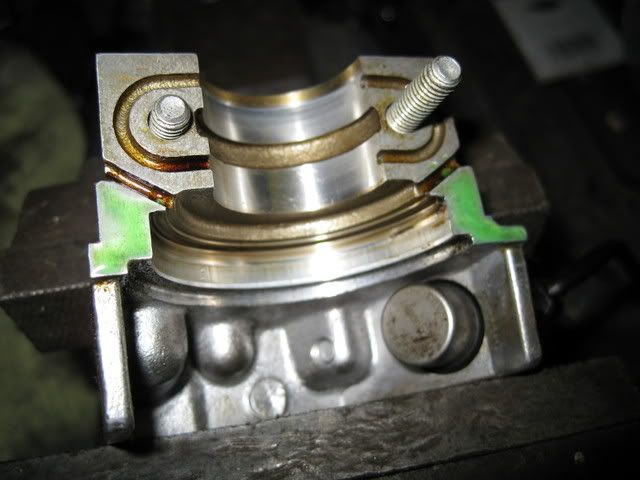

This is the closest I have, it shows it sticking through the front cam bearing

Logged

Marks DTM Calib

  • Administrator
  • *****
  • Offline Offline
  • Gender: Male
  • West Bridgford
  • Posts: 33982
  • Git!
    • View Profile
Re: Camshaft sensor position on 2.6 v6
« Reply #3 on: 30 March 2009, 18:43:54 »

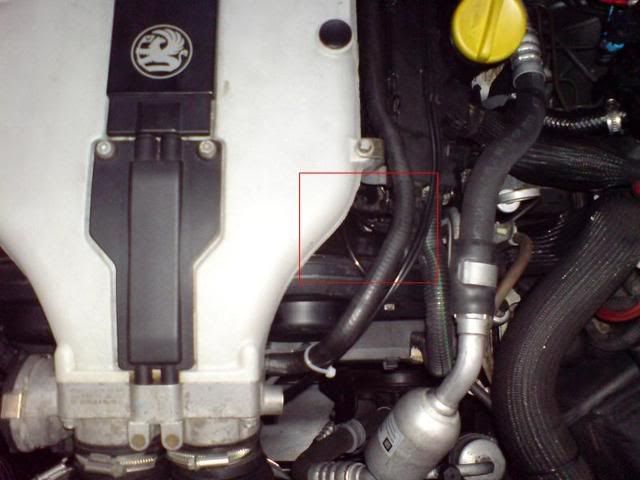

Ok its in this area

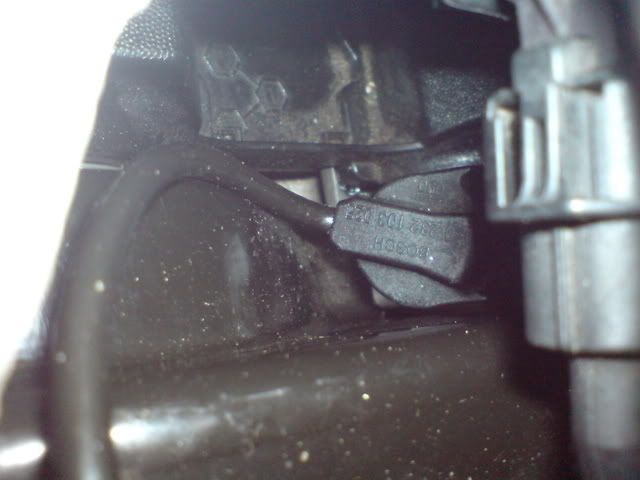

And a zoomed in picture



Its held in by a single torx screw which is just obscured in the picture by the connector on the right
Logged

colin28

  • Newbie
  • *
  • Offline Offline
  • Gender: Male
  • Southend-on-sea, Essex
  • Posts: 45
    • View Profile
Re: Camshaft sensor position on 2.6 v6
« Reply #4 on: 30 March 2009, 20:31:28 »
Thanks 4 your help mate.
Logged

bettsaj

  • Newbie
  • *
  • Offline Offline
  • Gender: Male
  • Sudbury, Suffolk
  • Posts: 1
    • Omega 2001 V6 2.6
    • View Profile
Re: Camshaft sensor position on 2.6 v6
« Reply #5 on: 22 January 2014, 09:17:29 »
What size Torx bolt is it... I need to change my sensor, and don't want to buy a whole set.
Logged

Nick W

  • Omega Queen
  • *****
  • Offline Offline
  • Gender: Male
  • Chatham, Kent
  • Posts: 11040
    • Ghastly 1.0l Focus
    • View Profile
Re: Camshaft sensor position on 2.6 v6
« Reply #6 on: 22 January 2014, 10:10:16 »
As the Omega is littered with torx bolts, a set would be a good idea!
However if you have a decent selection of 12point sockets, you should be able to find one that will work in a low torque application like this. Bear in mind It's against best practice.
Logged

omegod

  • Omega Baron
  • *****
  • Offline Offline
  • Gender: Male
  • liverpool
  • Posts: 4348
    • 2017 Seat Ateca
    • View Profile
Re: Camshaft sensor position on 2.6 v6
« Reply #7 on: 22 January 2014, 10:21:38 »
Aren't these normally bulletproof on the V6? whats the issue?
Logged
Happy to do Omega servicing etc around Merseyside,cruise activation, airbag lights sorted too...

05omegav6

  • Guest
Re: Camshaft sensor position on 2.6 v6
« Reply #8 on: 22 January 2014, 16:48:06 »
Had one fail on Josh's estate, replaced with known good second hand and no reported issues since :-\

Try 8mm 1/4" socket for removal :-X
Logged

dbug

  • Omega Queen
  • *****
  • Offline Offline
  • Gender: Male
  • Northants
  • Posts: 14279
  • Dont knock Linux!
    • Jaguar XJ 5.0V8 Portfolio
    • View Profile
    • Dbug IT Services
Re: Camshaft sensor position on 2.6 v6
« Reply #9 on: 22 January 2014, 23:39:59 »
Had one fail on the Estate - replaced by main dealer under warranty (they replaced crank sensor first which didn't fix problem of stalling, then cam sensor which did).  That was over 2 years ago - been ok since.
Logged
1972 Ferrari Dino, 1967 Triumph TR4A, Mondeo 2.0TDCi Estate, Jaguar XJ 5.0V8 Portfolio

05omegav6

  • Guest
Re: Camshaft sensor position on 2.6 v6
« Reply #10 on: 23 January 2014, 00:27:54 »
No idea why the one on J's car failed... :-\

Spanner light came on, so checked the codes and the cam sensor was at the top of the list, swapped with mine and the light went out and all was well... second hand one fitted to mine with no ill effects :y
