what's this connector for?
« on: 08 July 2012, 17:01:17 »

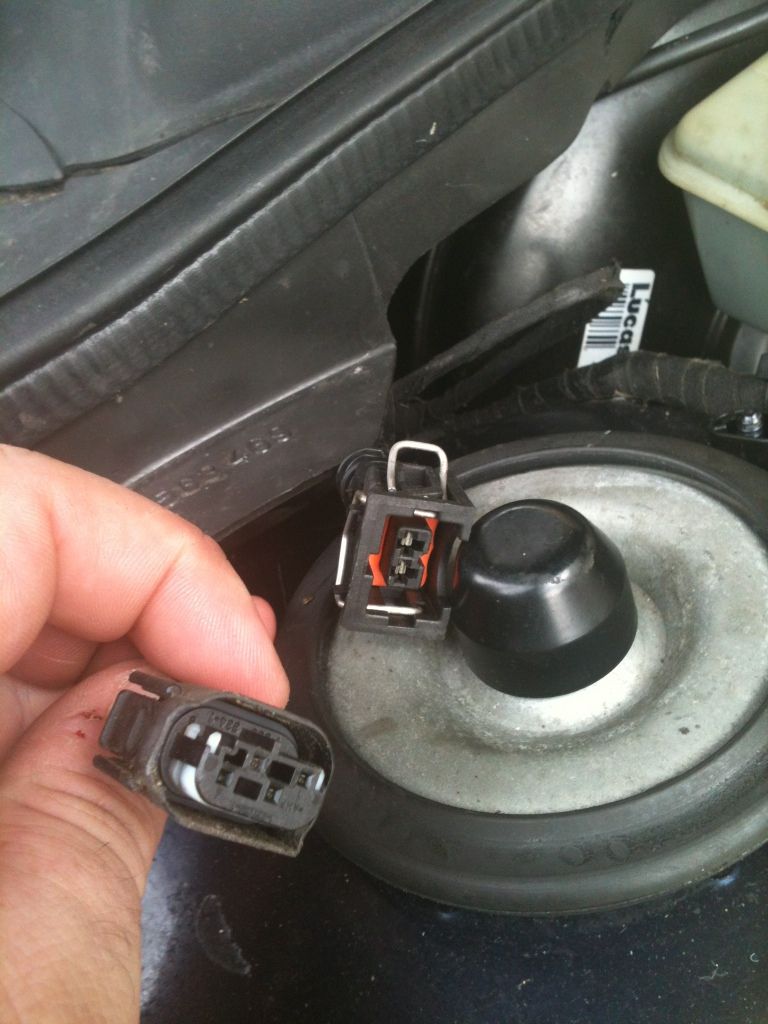

after taking out power sounder the other night I'd thought I'd check what damage had been done by me snappin the panel above it!
the connector on right is to power sounder but don't know what or where it goes there is about a foot of wire connected to it through bulk head. it wasn't connected to any thing and everything seems to be working fine. cheers ian
Logged

grain.ben

  • Guest
Re: what's this connector for?
« Reply #1 on: 08 July 2012, 17:15:59 »
the connector in your fingers is the powersounder plug, not sure what the one on the right is
Logged

plym ian

  • Omega Baron
  • *****
  • Offline Offline
  • Gender: Male
  • Plymouth, Devon
  • Posts: 2997
    • 2.0 insignia elite tourer
    • View Profile
Re: what's this connector for?
« Reply #2 on: 08 July 2012, 17:35:28 »
Quote from: grain.ben on 08 July 2012, 17:15:59
the connector in your fingers is the powersounder plug, not sure what the one on the right is
should read on left is power sounder sorry my fault ::)
Logged

grain.ben

  • Guest
Re: what's this connector for?
« Reply #3 on: 08 July 2012, 17:43:21 »
i have a spare connector on mine, but it doesnt go anywhere or do anything, so i left it taped up to the wiring loom.

I have two connectors to the powersounder and alarm horn, and the spare one  ;D
Logged

noel

  • Omega Knight
  • *****
  • Offline Offline
  • Gender: Male
  • frome somerset
  • Posts: 1607
  • i feel the need for speed
    • 02 omega 2.6 v6 cdx auto
    • View Profile
Re: what's this connector for?
« Reply #4 on: 08 July 2012, 17:44:03 »
is the other connector for the horn that is fitted close to the power sounder :-\
Logged
oh well that's another day done

TheBoy

  • Administrator
  • *****
  • Offline Offline
  • Gender: Male
  • Brackley, Northants
  • Posts: 107031
  • I Like Lockdown
    • Whatever Starts
    • View Profile
Re: what's this connector for?
« Reply #5 on: 08 July 2012, 17:56:41 »
Kickdown switch is in that area as well, and will be unplugged on a manual.

One in hand is PS though
Logged
Grumpy old man

plym ian

  • Omega Baron
  • *****
  • Offline Offline
  • Gender: Male
  • Plymouth, Devon
  • Posts: 2997
    • 2.0 insignia elite tourer
    • View Profile
Re: what's this connector for?
« Reply #6 on: 08 July 2012, 18:37:34 »
Quote from: noel on 08 July 2012, 17:44:03
is the other connector for the horn that is fitted close to the power sounder :-\
no that one is connected :y
Logged

grain.ben

  • Guest
Re: what's this connector for?
« Reply #7 on: 08 July 2012, 18:57:44 »
what colours are the wires on the two pin connector? one on the right
Logged

plym ian

  • Omega Baron
  • *****
  • Offline Offline
  • Gender: Male
  • Plymouth, Devon
  • Posts: 2997
    • 2.0 insignia elite tourer
    • View Profile
Re: what's this connector for?
« Reply #8 on: 08 July 2012, 19:41:43 »
Quote from: grain.ben on 08 July 2012, 18:57:44
what colours are the wires on the two pin connector? one on the right
don't know they are wrapped up will look tomorrow :y
Logged

ffcgary1

  • Omega Baron
  • *****
  • Offline Offline
  • Gender: Male
  • Mitcham,Surrey.
  • Posts: 2805
  • I really must get my eyes seen to.
    • Omega Estate/ jaguar XJ6
    • View Profile
Re: what's this connector for?
« Reply #9 on: 08 July 2012, 19:45:55 »
Cruise control?
Logged
Elite leather, cruise control, 3.0ltr cams, gas flowed 3.0ltr inlet manifold, 4 bar fuel pressure regulator, rear side window demisters, rear electric windows. projectors /HID'S, h/l washers.
Jaguar XJ6

plym ian

  • Omega Baron
  • *****
  • Offline Offline
  • Gender: Male
  • Plymouth, Devon
  • Posts: 2997
    • 2.0 insignia elite tourer
    • View Profile
Re: what's this connector for?
« Reply #10 on: 08 July 2012, 20:33:15 »
Quote from: ffcgary1 on 08 July 2012, 19:45:55
Cruise control?
no cruise control works fine
Logged

grain.ben

  • Guest
Re: what's this connector for?
« Reply #11 on: 08 July 2012, 20:45:20 »
how long is the wire? just had a look at mine, got the 2 connectors for the powersounder and alarm horn, 1 connector running to the brake fluid cap and another going to the coolant bottle, and also the redundant one, but mine is a different style plug to the one your trying to find out about.
Logged

plym ian

  • Omega Baron
  • *****
  • Offline Offline
  • Gender: Male
  • Plymouth, Devon
  • Posts: 2997
    • 2.0 insignia elite tourer
    • View Profile
Re: what's this connector for?
« Reply #12 on: 09 July 2012, 07:36:17 »
Quote from: grain.ben on 08 July 2012, 20:45:20
how long is the wire? just had a look at mine, got the 2 connectors for the powersounder and alarm horn, 1 connector running to the brake fluid cap and another going to the coolant bottle, and also the redundant one, but mine is a different style plug to the one your trying to find out about.
it's about 12" long I will get a better pic later as well as finding out what colour the wires are :y
Logged

grain.ben

  • Guest
Re: what's this connector for?
« Reply #13 on: 09 July 2012, 17:34:35 »
12" in length from the scuttle? if so, it might possibly be the coolant tank sensor, mine runs underneath it but cant see the plug, plus the wires are all taped up so dont know what colours they are  :y
Logged

albitz

  • Guest
Re: what's this connector for?
« Reply #14 on: 09 July 2012, 17:38:23 »
Wrong type of plug for coolant sensor (iirc) and the terminals havent been bridged,so I would think the display would be showing "coolant level".
Logged
