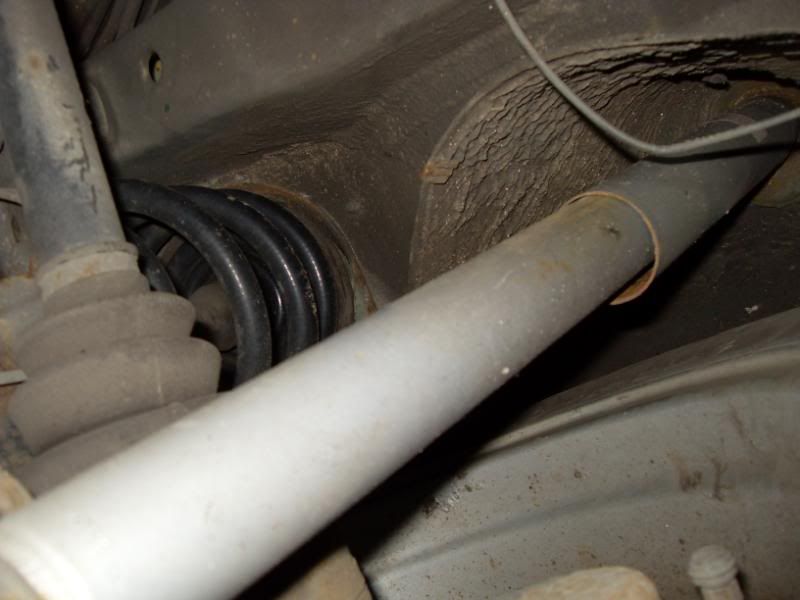

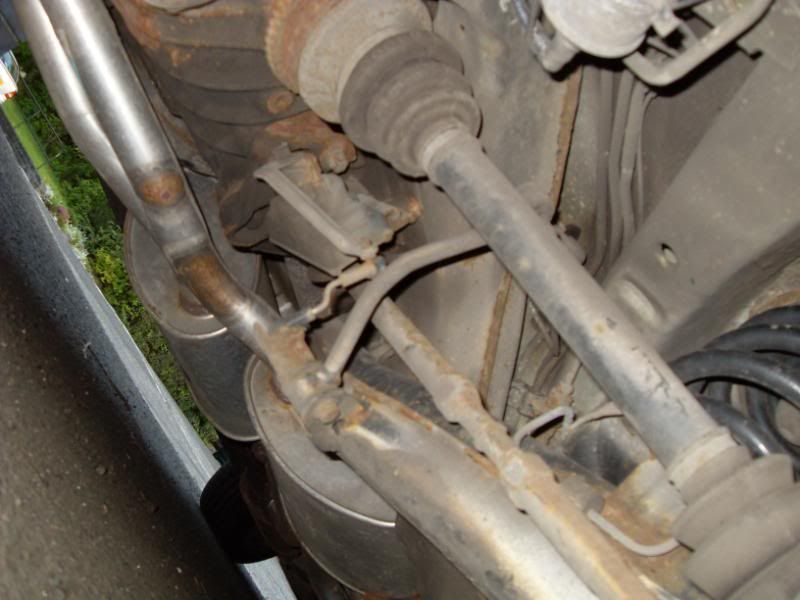

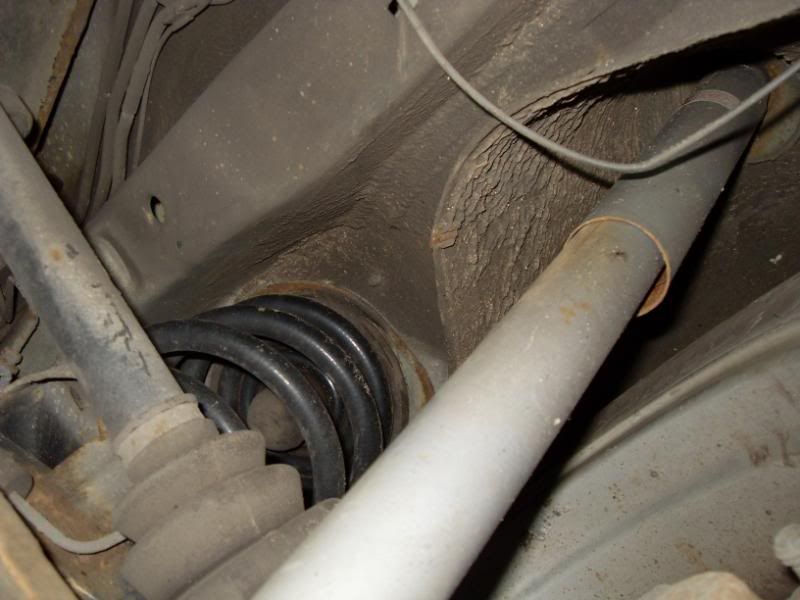

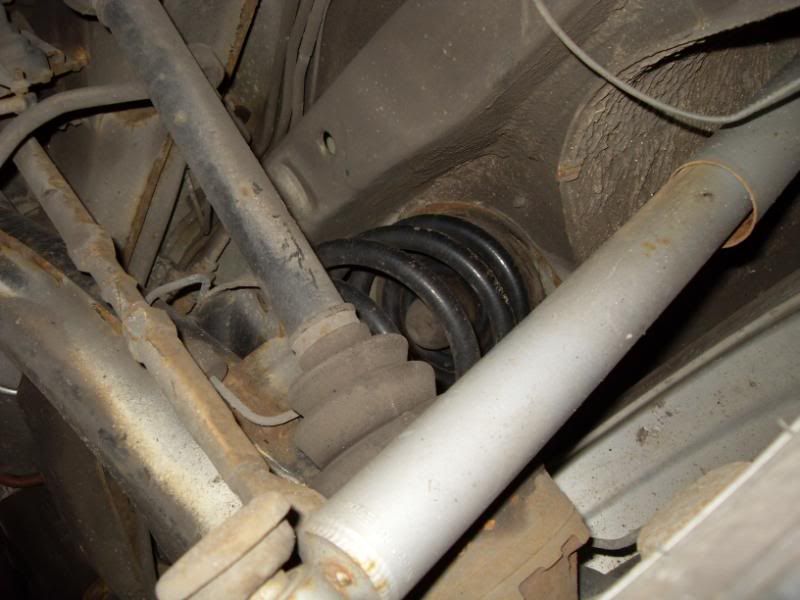

pics of my elite suspension
« on: 30 May 2010, 19:06:13 »

help,my car looks like its been jacked up,

please see here

http://www.omegaowners.com/forum/YaBB.pl?num=1275240892
Logged

RobG

  • Omega Queen
  • *****
  • Offline Offline
  • Gender: Male
  • Bristol
  • Posts: 13831
  • I might have a link, pic or part number for that
    • 16 plate Mokka. Vivaro
    • View Profile
Re: pics of my elite suspension
« Reply #1 on: 30 May 2010, 20:05:57 »

Looks like estate shocks. Rear blind probs. Push the switch and get someone to "help" the blind up. Glovebox handle, guide in maintenance
Logged
All that is necessary for the triumph of evil is that good men do nothing.

UPVC windows/doors/fascias/soffit/gutters supplied/fitted

elite col

  • Junior Member
  • **
  • Offline Offline
  • 0
  • Posts: 78
    • View Profile
Re: pics of my elite suspension
« Reply #2 on: 30 May 2010, 20:16:42 »

i can take more pics,what makes you say estate shocks?

wouldnt it be the springs that control the height if the self leveling doesnt work/disconnected?

sorry but dont know a terrible amount about vauxhalls,newish ones anyway
Logged

Boditza

  • Senior Member
  • ****
  • Offline Offline
  • Gender: Male
  • Craiova, Romania
  • Posts: 601
    • View Profile
Re: pics of my elite suspension
« Reply #3 on: 30 May 2010, 20:24:34 »

those shocks don't look like height adjustable to me.. they probably are estate shocks and without height adjust. try to see if they have a hose inserted into them.
Logged

Andy H

  • Omega Lord
  • *****
  • Offline Offline
  • Gender: Male
  • Auckland
  • Posts: 5533
    • Mazda MPV
    • View Profile
Re: pics of my elite suspension
« Reply #4 on: 30 May 2010, 20:27:54 »

The self leveling suspension uses a level sensor on the offside rear suspension arm.

First thing to do is read the maintenance giude How to Test Raise / Lower self levelling suspension
Logged
"Deja Moo - The feeling that you've heard this bull somewhere before."

elite col

  • Junior Member
  • **
  • Offline Offline
  • 0
  • Posts: 78
    • View Profile
Re: pics of my elite suspension
« Reply #5 on: 30 May 2010, 21:11:24 »

think they are standard shocks,no hose etc

what should i do?

springs or shocks?




Logged

JesterRT

  • Intermediate Member
  • ***
  • Offline Offline
  • Gender: Male
  • Stafford
  • Posts: 338
    • View Profile
Re: pics of my elite suspension
« Reply #6 on: 30 May 2010, 21:15:14 »

I suspect some cross-terminology.

Shocks/Springs - same things

Dampers - what you may be referring to as 'shocks'.
Logged

elite col

  • Junior Member
  • **
  • Offline Offline
  • 0
  • Posts: 78
    • View Profile
Re: pics of my elite suspension
« Reply #7 on: 30 May 2010, 21:50:47 »

shocks as in dampers yes
Logged

feeutfo

  • Guest
Re: pics of my elite suspension
« Reply #8 on: 30 May 2010, 22:00:25 »

i.d.'ing gm sprins is difficult, they are colour coded rather than going by part number. Those shocks are wrong.
So given the above you need to decide what direction you want to go with your suspension. If you want to keep self leveling fit self level ahocks from vx at 150 a pair on trade club and then see what the ride hight does. If still too high fit self levelling springs but from kyb via buy parts buy, part number is shown on the spring pictured in the guide for 80 odd a pair.

If you want better handelling and slightly lower ride hight fit mv6 lowered sports chassis shocks and springs. Trade card is a must for vx springs.

Worth checking the pump still works, check the fuse is present and play with the arm on the sensor and see if it pumps air out if the pipes. If its not working i guess thats decission made, but beware mv6 suspension wont take the load self levelling will. hth.

I
Logged

robson

  • Omega Knight
  • *****
  • Offline Offline
  • Gender: Male
  • Nr Ashford Kent
  • Posts: 1835
    • 2.6 facelift 2003
    • View Profile
Re: pics of my elite suspension
« Reply #9 on: 30 May 2010, 23:18:52 »

I have the opposite to this my back end is low the top of the tyre is about level with the wheel arch is this a spring or a damper problem I am thinking about fitting air shocks but will this lift the back end if it is a spring problem.
Logged

feeutfo

  • Guest
Re: pics of my elite suspension
« Reply #10 on: 31 May 2010, 00:10:52 »

Quote
I have the opposite to this my back end is low the top of the tyre is about level with the wheel arch is this a spring or a damper problem I am thinking about fitting air shocks but will this lift the back end if it is a spring problem.

first thing to check is for broken springs, and see whats fitted, cheapo parts may be a give away.

Difficult to say if its a shock or spring issue as the shocks i've seen also support the ride hight.
Logged

lee4206

  • Senior Member
  • ****
  • Offline Offline
  • Gender: Male
  • southampton
  • Posts: 679
  • Mot Tester
    • 2000 3.0l manual MV6
    • View Profile
Re: pics of my elite suspension
« Reply #11 on: 31 May 2010, 12:15:37 »

Unless the shocks are hight ajustable   its the springs that set the ride hight so i would say that the wrong springs have been fitted.
lee
Logged
VAUXHALL TRADE CLUB AND HALFORDS TRADE CARD  AND V6 LOCKING KIT HOLDER  always happy to help if poss

kcl

  • Omega Knight
  • *****
  • Offline Offline
  • Gender: Male
  • Finland
  • Posts: 1224
    • Volvo V60 D4 -14
    • View Profile
Re: pics of my elite suspension
« Reply #12 on: 31 May 2010, 12:58:41 »

IIRC estate shocks are the shorter ones? So, OP has wrong springs installed... and the springs that long are not for any model of Omega...
Logged

jay69

  • Junior Member
  • **
  • Offline Offline
  • Gender: Male
  • sheffield
  • Posts: 62
    • View Profile
Re: pics of my elite suspension
« Reply #13 on: 31 May 2010, 20:40:22 »


this how mine sits abit lower than standard  ;D
Logged
51 plate omega elite 2.6 v6

robson

  • Omega Knight
  • *****
  • Offline Offline
  • Gender: Male
  • Nr Ashford Kent
  • Posts: 1835
    • 2.6 facelift 2003
    • View Profile
Re: pics of my elite suspension
« Reply #14 on: 31 May 2010, 22:05:54 »

Jay69 Looks a bit like mine what is the height floor to wheel arch and what size wheels. Looking around there seems to be a lot of variation in rear ride height on Omegas. Can anybody else give me a height floor to wheel arch and is there a spec.  for this.
